The Cyberstrak Plugin contains commands for the creation and modification of NURBS geometry and meshes like

• Smoothing of Curves, Surfaces and Mesh areas
• Surface Blend creation
• Modeling of NURBS control vertices

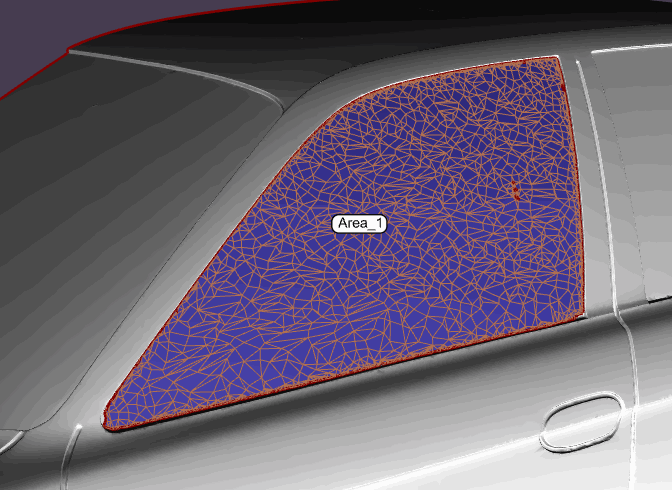

• Creation of Nurbs surfaces on selected Mesh areas.

All modeling commands offer a local Undo/Redo allowing easy comparison of different work stages. There is also integrated analysis functionality helping to judge the quality of the current geometry. Please have also a look to the Cyberstrak YouTube channel.

In addition there are Analysis commands like

• Sections through geometry
• Curvature analysis of Curves and Surfaces
• Graphical deviation between objects (e.g. deviation display between surface to a mesh, shaded deviation)

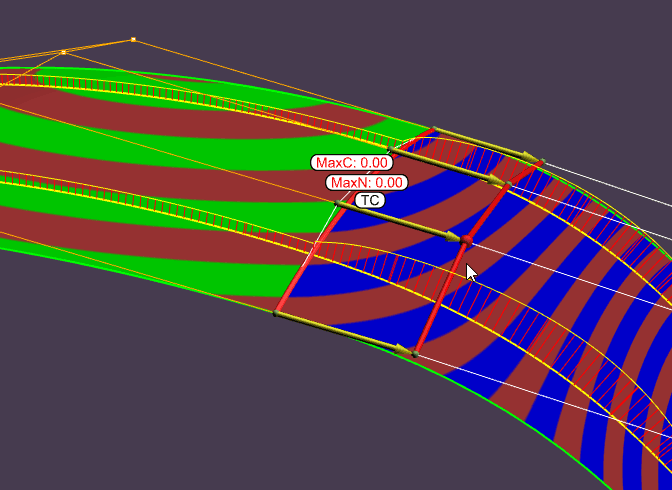

• Analysis of transition quality between matched curves or surfaces

The analyses are following associatively all geometry modifications and will be dynamically updated during the modeling process.
