2X2 Window

(by F.Salla)

Resource File

Downloads:

879

Swing Window with 2x2 leaves. Each leaf opens individually.

Object type:

Window

Components:

Frame
Mullion
Glass
Leaves
Handles

Parameters:

Overall dimensions: height and width
Frame dimensions: width and depth
Leaves opening %
Mullion Width
Window leaf frame dimensions: depth and width
Leaves aperture for each one individually
Adjust Frame to wall thickness
Wall/Frame Alignment
Frame/Leaves Alignment
Handle distribution by opening side and by Top/Bottom leaves

(You need to run the vaStylesImport command to import this style into your document.)

Category:

Category:
Architecture, BIM

Resource Type

:

VisualARQ styles

License:

License Type:
The Unlicense

Paid Resource:

Cost:

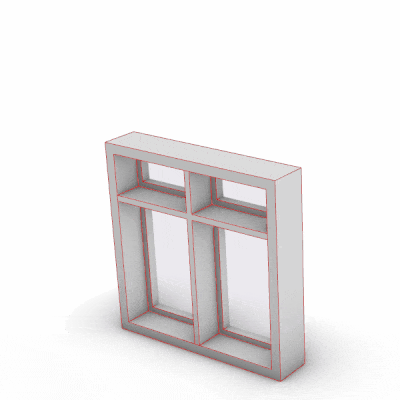

Swing Window with 2x2 leaves.

Swing Window with 2x2 leaves.
