Wall From Section Profile

(by F.Salla)

Resource File

Downloads:

454

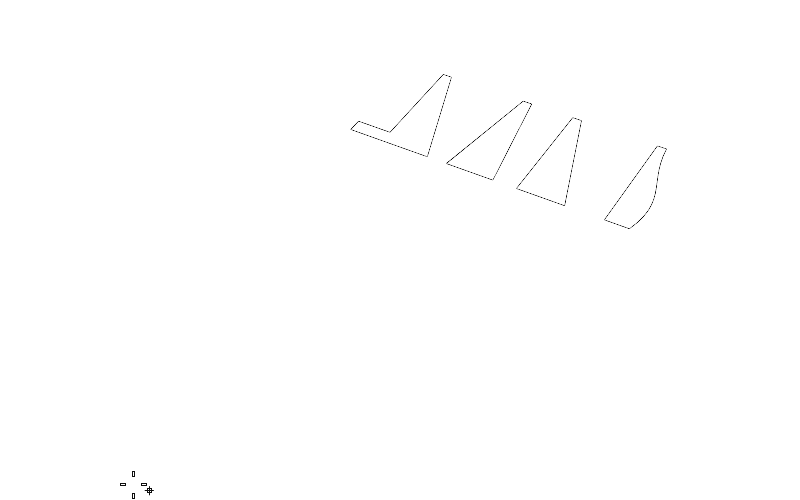

Wall created from a custom section profile, that can be changed by each wall.

The wall takes the height of the profile, but it can be scaled according to a given height, if the "Scale Height" parameter is enabled.

Run the vaStylesImport command to import this style in your document

This style is only compatible with VisualARQ 3.

Object type:

Parameters:

Cost:
