Space dimensions
(by F.Salla)

Resource File

Downloads:
1200
Support Email
Support Forum
Website

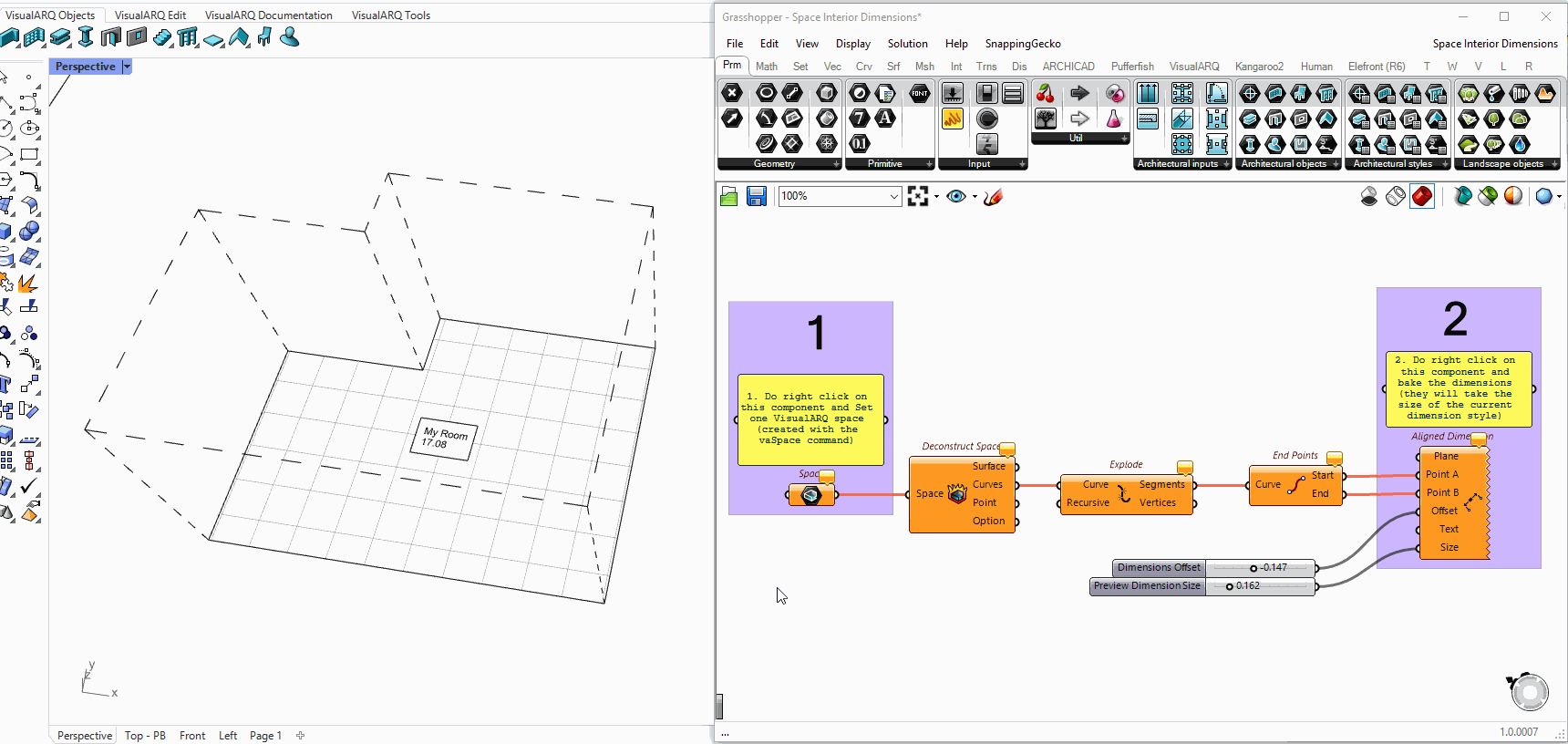

Insert one or more VisualARQ space objects (https://youtu.be/FPuXLGeSN78), reference them in Grasshopper, and bake the generated interior dimensions of their boundaries.

It is necessary to have VisualARQ installed to use this definition. (https://www.visualarq.com/download/)

Note: This definition has been developed in Rhino 8. If you need it in Rhino 7 version, please write me to fsalla@asuni.com.

Category:

Resource Type
:
Grasshopper definition

License:

Paid Resource:

Cost:
Free
  • Generates the interior dimensions of VisualARQ spaces
